Suitable for nano to 45-75cm Aquariums

FIXTURE COVERAGE

Effective: 30in x 20in  |  Maximum: 36in x 24in
Tank Mount Suitable for Aquariums: 18-27.5in Long

---

• Lightweight Architectural Grade Aluminum Alloy Frame
• Aerodynamic Passive Cooling Design
• On-Board Advanced Controller with LED Display
• Wireless Controllability with iOS and Android Devices*
• Connect and Control up to 32 RSX Fixtures
• Enhances Coral Growth & Coloration
• Utilizes the 410/420nm Spectrum
• 4 Programmable Color Channels
• Mimic Nature from Dawn to Dusk
• Includes Tank-top Mounting Legs
• Utilizes Cree XLamp, XT-E & XP-E LED chips

* Optional iOS and Android control requires Maxspect Connect (ICV6), sold separately.



LIMITLESS SPECTRAL COMBINATIONS TO FIT YOUR TANK’S NEEDS

Built with a aerodynamic body, the Razor X LED Lighting System is designed to seamlessly merge into your living area with elegance and style. The Razor X is an all-in-one LED system utilizing the latest in LED technology, including Cree XT-E and XP-E high intensity LED chips distributed in 4 different channels, offering impressive performance and versatility.

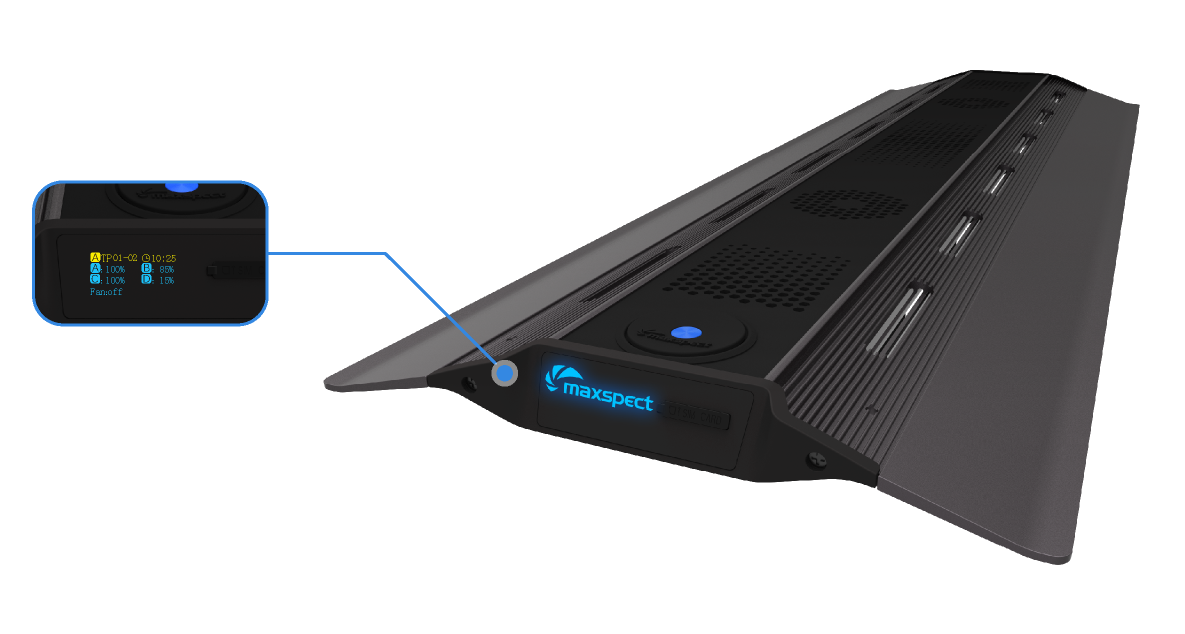

Built-in Controller

There’s no need to buy an additional controller just to be able to use your aquarium lighting, the Maxspect Razor X has control built-in. The built-in controller integrated in the Razor X features an OLED monitor and a control dial, from which user can easily setup all the functions for the fixture.

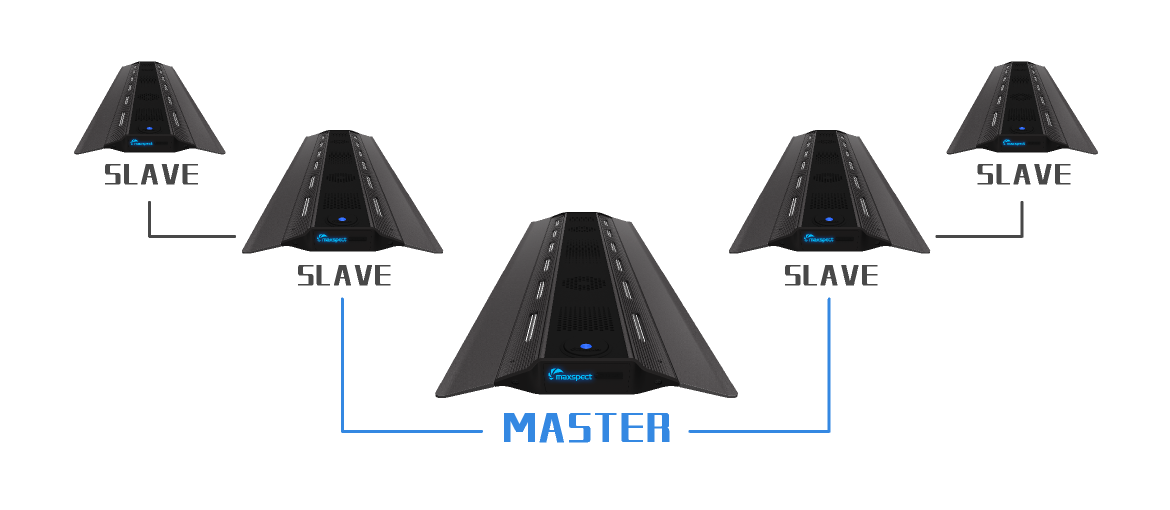

Standard or Master/Slave Mode

2 or more Razor X fixtures can be connected together through the Master/Slave mode to control them simultaneously - all Slave fixtures will follow the settings programmed on the Master fixture, saving time and effort on setting up multiple fixtures.

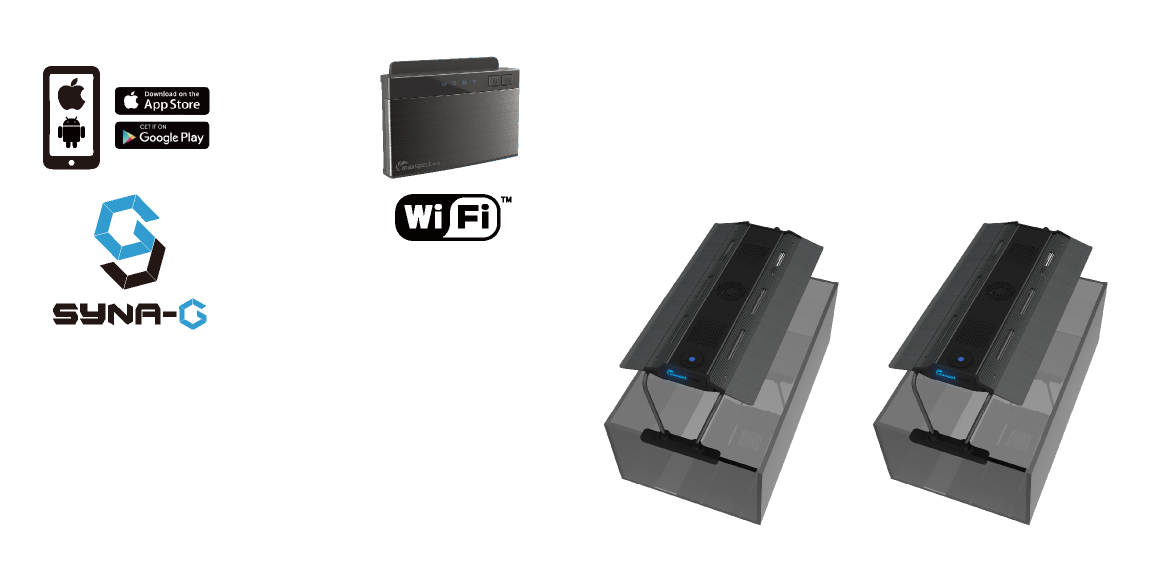

Control with iOS or Android Devices (Optional)

The Razor X can be wirelessly connected to a Maxspect Connect ICV6 controller (sold separately), which allows the Razor X fixture(s) to be controlled by iOS or Android devices through the Syna-G app.

Enhanced Growth and Coloration

The Razor X Lighting system is designed to provide all ranges of color spectrum required by corals and plants to enhance their growth rate, improve their coloration and at the same time giving your aquarium the most aesthetically pleasing combination of colors. The Razor X will meet the requirements of even the most sophisticated group of marine, reef and freshwater hobbyists.

410nm/420nm Super Actinic

The Razor X Lighting system utilizes the 410/420nm Super Actinic LED chips, the spectrum that's crucial for the success of any reef and water plant aquariums as it is required by Chlorophyll A for photosynthesis, where absorption peaks at 412nm.

Built-in Temperature Control System

The Razor X Lighting system deploys an ingenious aerodynamic design which draws cool air from underneath the fixture, through its body which also serves as a large heat sink, to dissipate heat passively. Equipped with fans to regulate fixture temperatures in enclosed environments. The fan(s) will be automatically engage when the temperature is above 55°C/131°F, and disengage when it is below 45°C/113° F.

R5X-100 TECHNICAL SPECIFICATIONS & WARRANTY

Suited for tanks 18in - 27.5in wide

Dimensions

Length: 18.4in
Width: 10.2in
Height: 1.25in

Power Specifications Consumption

115w from the wall

LEDs

Number of Clusters: 2
Total Number of LED: 40

Channel Colors

Channel A: Deep Blue + Cool White
Channel B: Deep Blue + Light Blue
Channel C: Violet + Deep Blue
Channel D: Cyan + Deep Red + Warm White

SPECIFICATION — LEDS





PLEASE NOTE: Fixture must have at least 15 cm (6 inches) of space above the fixture to allow proper heat dissipation. Do not place any foreign object on top of the fixture. Avoid splashing the fixture with water.



12 MONTH WARRANTY

Maxspect (Hong Kong) Limited warrants all Maxspect™ Razor X LED Lighting System products against defects in workmanship for a period of 12-months from the date of purchase. If a defect exists during the warranty period, Maxspect (Hong Kong) Limited at its option will either repair (using new or remanufactured parts) or replace (with a new or remanufactured unit) the product at no charge.

THE WARRANTY WILL NOT APPLY TO THE PRODUCT IF IT HAS BEEN DAMAGED BY MISUSE, ALTERATION, ACCIDENT, IMPROPER HANDLING OR OPERATION, OR IF UNAUTHORIZED REPAIRS ARE ATTEMPTED OR MADE. SOME EXAMPLES OF DAMAGES NOT COVERED BY WARRANTY INCLUDE, BUT ARE NOT LIMITED TO, USING AFTER-MARKET LED BULBS AND MODIFICATION OF THE CIRCUITRY, WHICH ARE PRESUMED TO BE DAMAGES RESULTING FROM MISUSE OR ABUSE.



PAR Distribution Heatmap

RSX Specification

RSX Spectrum

Mount Specification
