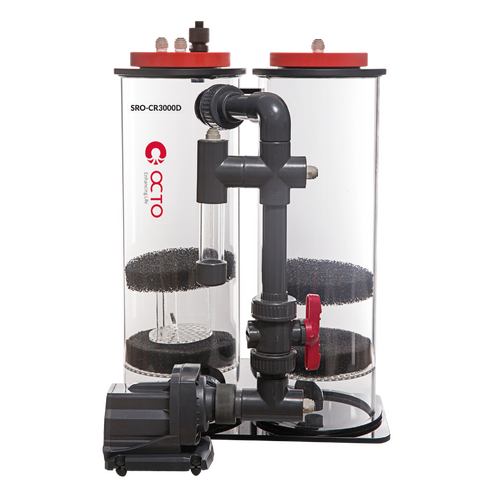

OCTO SRO-CR3000D Calcium Reactor

OCTO SRO-CR3000D Calcium Reactor



Features & Benefits

SRO-CR3000D & SRO-CR5000D

• Dual Chamber
• Reverse flow and CO2 recirculating design
• Built-in bubble counter for monitoring of CO2 drip rate
• Probe holder with plug *
• High quality handmade solid cast acrylic construction
• Removal lid for easy maintenance
• 1/4” quick connect fittings

* Does not include PH probe.

Overview

High performance reverse flow design, superior craftsmanship and a 2 year pump warranty are just a few of the features on the Super Reef Octopus Calcium Reactor.

All Super Reef Calcium Reactor come with our high water volume Water Blaster pumps which is equipped with ultra-tough Silicone Carbide Shafts and Bearings, this means no worries of moving parts freezing up causing broken shafts.

All Super Reef Calcium Reactors come with PH probe holders to monitor PH inside the first chamber of the reactor. Equipped with a PH probe holders to mount a PH probe to monitor PH levels in the main reactor chamber and built in bubble counters to monitor Co2 drip rates.

A “must have” equipment in high volume Aquarium to meet the challenging task of maintaining alkalinity, calcium and trace elements.

Available in Single (SRO-CR3000 & SRO-CR5000) or Dual Chamber (SRO-CR3000D &SRO-CR5000D)

What's included

Article Code	Items	SRO-CR3000D		SRO-CR5000D
		Model NO.	Qty	Model NO.	Qty
a	Top Cover 01	–	1	–	1
b	Top Cover 02	–	1	–	1
c	Valve	–	1	–	1
d	Sucker	–	1	–	1
e	Co2 Check Valve	–	1	–	1
f	Cross connection	–	1	–	1
g	Valve 01	–	2	–	2
h	“T” Connection	–	1	–	2
i	O Ring	–	1	–	1
j	O Ring	–	1	–	1
k	PH Probe Holder	–	1	–	1
l	Bracket	–	1	–	1
m	Sponge	–	1		1
n	Water blaster Pump	HY-3000W	1	HY-5000W	1



Technical Data

1. Calcium Reactor

Product	Wet/Dry	Pump Power		Diameter		Footprint				Height		Media Capacity
		50HZ	60HZ
		W	W	mm	inch	mm		inch		mm	inch	L	US Gal
SRO-CR3000	Both	30	35	200	7.9	380	280	15.0	11.0	580	22.90	7.9	2.1
SRO-CR5000	Both	55	60	220	8.7	410	280	16.2	11.0	580	22.90	9.3	2.5
SRO-CR3000D	Both	30	35	170	6.7	400	340	15.8	13.4	580	22.90	11.5	3.0
SRO-CR5000D	Both	55	60	200	7.90	460	390	18.1	15.4	580	22.90	15.2	4.0



Product	Inlet/Outlet Size	Tank Volume		Feeding Pump Suggestion
		L	US Gal	LPH	GPH
SRO-CR3000	ø6.3mm(1/4″)	1100-1800	290-475	500-800	132-211
SRO-CR5000	ø6.3mm(1/4″)	1400-2100	370-554	500-800	132-211
SRO-CR3000D	ø6.3mm(1/4″)	1500-2200	396-582	500-800	132-211
SRO-CR5000D	ø6.3mm(1/4″)	1600-2300	423-608	500-800	132-211



2. Circulation Pump

Product	Model No.	Wet/Dry	Power		Max Head Height				Maximum Flow Rate
			50HZ	60HZ	50HZ		60HZ		50HZ		60HZ
			W	W	m	Ft.	m	Ft.	LPH	GPH	LPH	GPH
SRO-CR3000	HY-3000W	Both	30	35	2.3	7.5	2.6	8.5	3400	898	3483	920
SRO-CR5000	HY-5000W	Both	55	60	3.3	10.8	3.4	11.0	5200	1373	5489	1452
SRO-CR3000D	HY-3000W	Both	30	35	2.3	7.5	2.6	8.5	3400	898	3484	920
SRO-CR5000D	HY-5000W	Both	55	60	3.3	10.8	3.4	11.0	5200	1373	5489	1452

Pumps (Aquatrance) – CE certified



Explosion Charts

Explosion Chart for SRO-CR3000D



Explosion Chart for SRO-CR5000D
