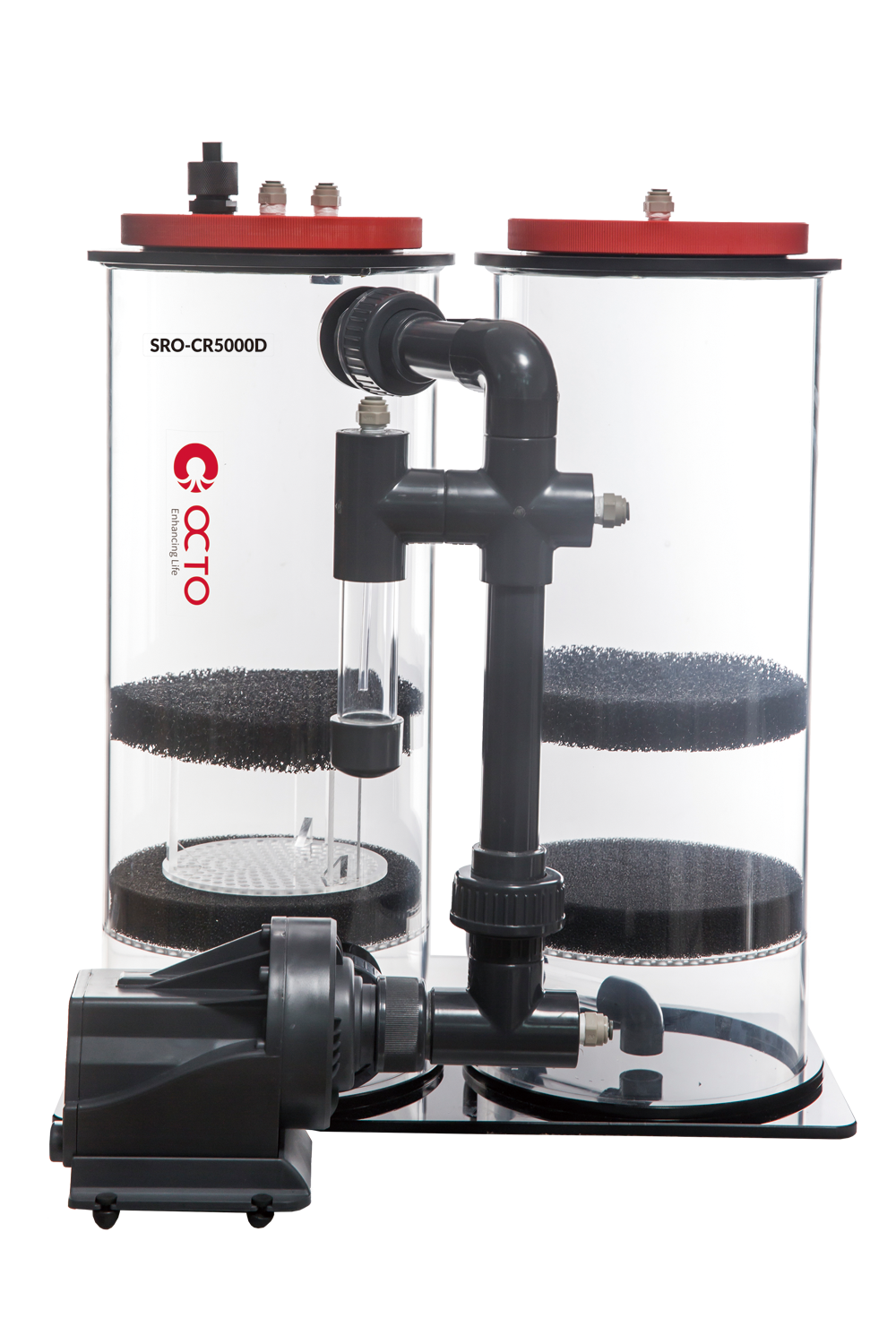

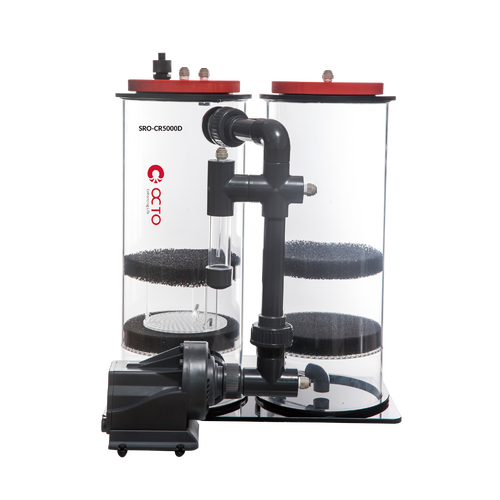

OCTO SRO-CR5000D Calcium Reactor

Features & Benefits

SRO-CR3000D & SRO-CR5000D

  • Dual Chamber
  • Reverse flow and CO2 recirculating design
  • Built-in bubble counter for monitoring of CO2 drip rate
  • Probe holder with plug *
  • High quality handmade solid cast acrylic construction
  • Removal lid for easy maintenance
  • 1/4” quick connect fittings

* Does not include PH probe.

Overview

High performance reverse flow design, superior craftsmanship and a 2 year pump warranty are just a few of the features on the Super Reef Octopus Calcium Reactor.

All Super Reef Calcium Reactor come with our high water volume Water Blaster pumps which is equipped with ultra-tough Silicone Carbide Shafts and Bearings, this means no worries of moving parts freezing up causing broken shafts.

All Super Reef Calcium Reactors come with PH probe holders to monitor PH inside the first chamber of the reactor. Equipped with a PH probe holders to mount a PH probe to monitor PH levels in the main reactor chamber and built in bubble counters to monitor Co2 drip rates.

A “must have” equipment in high volume Aquarium to meet the challenging task of maintaining alkalinity, calcium and trace elements.

Available in Single (SRO-CR3000 & SRO-CR5000) or Dual Chamber (SRO-CR3000D &SRO-CR5000D)

What's included

Article Code Items SRO-CR3000D SRO-CR5000D
Model NO. Qty Model NO. Qty
a Top Cover 01 1 1
b Top Cover 02 1 1
c Valve 1 1
d Sucker 1 1
e Co2 Check Valve 1 1
f Cross connection 1 1
g Valve 01 2 2
h “T” Connection 1 2
i O Ring 1 1
j O Ring 1 1
k PH Probe Holder 1 1
l Bracket 1 1
m Sponge 1   1
n Water blaster Pump HY-3000W 1 HY-5000W 1



Technical Data

1. Calcium Reactor

Product Wet/Dry Pump Power  Diameter Footprint Height Media Capacity
    50HZ 60HZ
    W W mm inch mm inch mm inch L US Gal
SRO-CR3000 Both 30 35 200 7.9 380 280 15.0 11.0 580 22.90 7.9 2.1
SRO-CR5000 Both 55 60 220 8.7 410 280 16.2 11.0 580 22.90 9.3 2.5
SRO-CR3000D Both 30 35 170 6.7 400 340 15.8 13.4 580 22.90 11.5 3.0
SRO-CR5000D Both 55 60 200 7.90 460 390 18.1 15.4 580 22.90 15.2 4.0



Product Inlet/Outlet Size Tank Volume Feeding Pump Suggestion
    L US Gal LPH GPH
SRO-CR3000 ø6.3mm(1/4″) 1100-1800 290-475 500-800 132-211
SRO-CR5000 ø6.3mm(1/4″) 1400-2100 370-554 500-800 132-211
SRO-CR3000D ø6.3mm(1/4″) 1500-2200 396-582 500-800 132-211
SRO-CR5000D ø6.3mm(1/4″) 1600-2300 423-608 500-800 132-211



2. Circulation Pump

Product Model No. Wet/Dry Power Max Head Height Maximum Flow Rate
      50HZ 60HZ 50HZ 60HZ 50HZ 60HZ
      W W m Ft. m Ft. LPH GPH LPH GPH
SRO-CR3000 HY-3000W Both 30 35 2.3 7.5 2.6 8.5 3400 898 3483 920
SRO-CR5000 HY-5000W Both 55 60 3.3 10.8 3.4 11.0 5200 1373 5489 1452
SRO-CR3000D HY-3000W Both 30 35 2.3 7.5 2.6 8.5 3400 898 3484 920
SRO-CR5000D HY-5000W Both 55 60 3.3 10.8 3.4 11.0 5200 1373 5489 1452

Pumps (Aquatrance) – CE certified



Explosion Charts

Explosion Chart for SRO-CR3000D

 Explosion Chart for RO-CR-3000D

Explosion Chart for SRO-CR5000D

Explosion Chart for RO-CR-5000D



(130109)

SKU 130109
Brand OCTO aka Reef Octopus
